Duo Pipe Stands

Base frame without attachments 2400 kg

Pair Steel Wheel Head 2400 kg

Model DPS 200

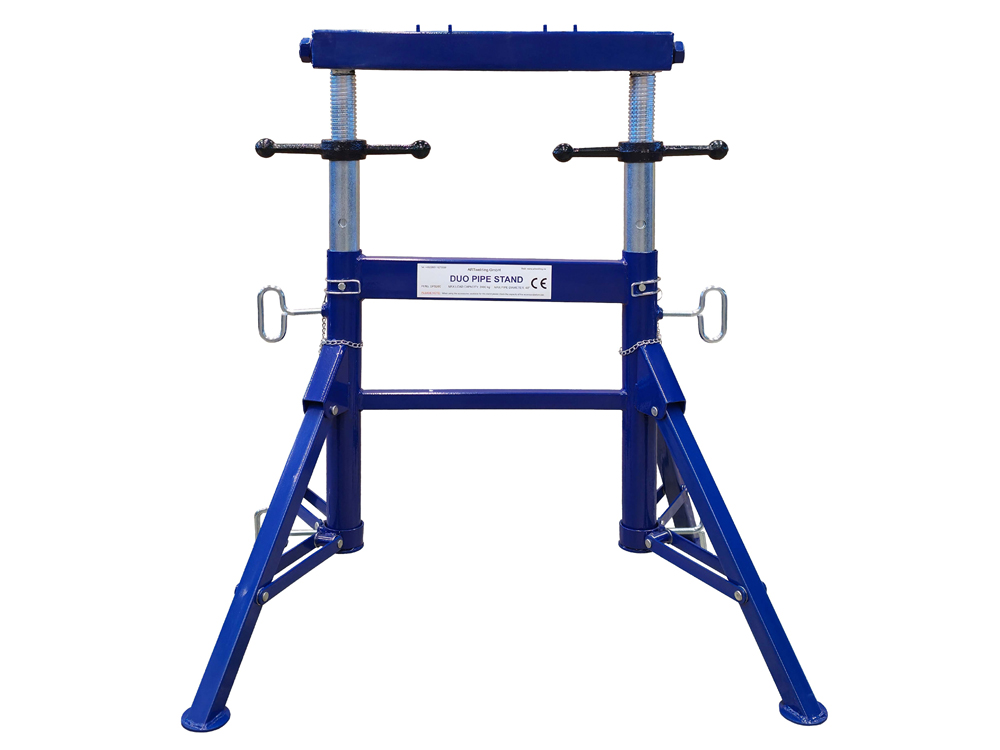

Duo Pipe Stands
Heavy duty four leg height adjustable style pipe stands

The Duo Stand is height adjustable and uses quick change style housings. Designed for large diameter pipe rotation and feeding. With lock brakes on the wheels to secure the load for marking layout or fit-up. Now supplied with folding legs as standard for ease of use and transport.

Features and benefits



  • Weight certified to 2400 kg / 5290 lbs
  • Folding legs for ease of transport and storage
  • Self centering roller adjustment from either sides
  • Height adjustable 29–43″ (74–109 cm)
  • Pipe diameter capacity ½–48″ (12–1220 mm)
  • Height leveling from either side of the stand
  • Wheels trued for true pipe rotation
  • Bronze bearing to eliminate arcing
  • Brake to lock loads for layout or fit-up
  • Uses Quick Change Housings
  • CE rated
Model SWH 200

Pair Steel Wheel Head 2400 kg

Pair Stainless Steel Wheel Head 2400 kg

Pair Nylon Wheel Head 450 kg

Model SWH 200SS

Pair Stainless Steel Wheel Head 2400 kg

Model NWH 200

Pair Nylon Wheel Head 450 kg

Pair Ball Transfer Head 1450 kg



Pair Stainless Steel Ball Transfer Head 1450 kg

Modell BTH 200

Pair Ball Transfer Head 1450 kg

Modell BTH 200SS

Pair Stainless Steel Ball Transfer Head 1450 kg

Datasheet

Duo Pipe Stands
